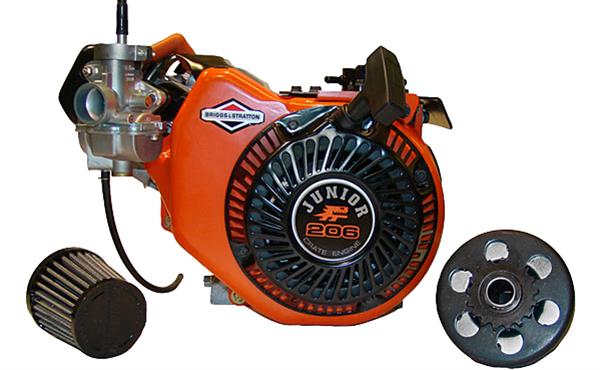

Briggs & Stratton Genuine 124332-8202 ENGINE JR 206 Replacement Part
Brand: Briggs & Stratton
Part Type: Small Displacement Crate Engines
Product Line: Briggs & Stratton Junior 206 Crate Engine
Engine Assembly Style: Long block
Engine Block Material: Aluminum
Engine Stroke (in):2.200 in.
Cylinder Bore Diameter:2.688 in.
Engine Compression Ratio:8.5:1
Induction Style: Carbureted
Carburetor Included: Yes
Flywheel Included: Yes
Flywheel Material: Aluminum
Starter Included: Yes
Starter Type: Pull start
Compression Release: No
Quantity: Sold individually.
Briggs & Stratton Junior 206 crate engines are made tough! Each engine is hand-assembled in-house using tooling and dies specifically made for racing--for unparalleled repeatability. The factory-sealed long blocks include a ground cam and controlled piston pop-up (reducing compression variance). They're a simplified IKF/WKA rule set designed to maintain a stock configuration, right down to the factory carburetor jets. These 206 race engines are powerhouses!
Briggs & Stratton Junior 206 race-only crate engine specs and features:
Primary use: for karting, high school/collegiate Supermileage Competitions
Reinforced, cast iron sleeved, dual ball bearing racing cylinder
Single cast, custom aluminum alloy cylinder head with high-flow intake port, custom seat/guide material
Squeeze cast, T-7 heat-treated aluminum rod with reinforced I-beam
Carbon steel crankshaft with the induction-hardened, micro-polished, crankpin-reinforced timing gear
Cam ground, barrel faced, eutectic alloy piston with the 3-piece ring set with chrome faced top ring
.255 max. lift ground cam with nitrated lobes and built-in mechanical compression release
High-silicon, racing-engineered valve springs for seasons of racing
High-grade stainless steel dished valves with nitrated exhaust
3-piece, automotive-style keepers and reinforced rocker arm and lock ball
PVL digital ignition with built-in 4,100 rpm rev limiter
PVL steel hub, cast aluminum flywheel
Briggs & Stratton tooled 22mm round slide, fully adjustable jet carburetor
Custom graph oil composition head gasket
Max-Torque clutch, driver, and installation kit
Green premium air filter
Carburetor locking cap
